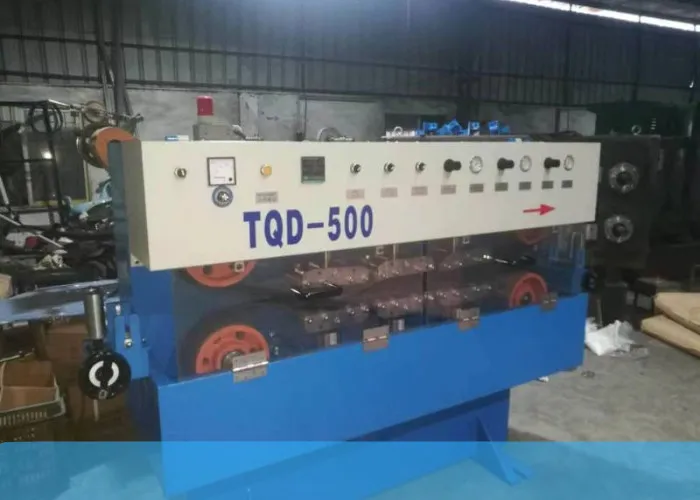

Detail Information Product Description Detail Information Application: For Pulling Cable Service: 12month Warranty Voltage: 3-phase 5wire 380V 50HZ Motor Power: 3-55kw Tractive Force: 200~15000kg Speed: 20-150m/Min Highlight: Pneumatic cable sheathing machine , Pneumatic Caterpillar Traction Device , 150m/Min Caterpillar Traction Device Product Description Pneumatic Traction Device for Fiber Optic Outdoor Cable Sheathing Line The Pneumatic Traction Device is a key auxiliary machine designed for fiber optic and power cable production lines, specifically used in outdoor cable sheathing, insulation extrusion, armoring, and cable forming processes.

It provides stable and precise traction to ensure consistent cable quality during continuous production. This traction unit adopts a flat belt traction structure with pneumatic clamping , delivering uniform pressure and reliable gripping force without damaging the cable surface.

With a well-engineered mechanical structure and flexible drive options, it is an ideal solution for modern cable manufacturing plants. Product Structure & Design The traction device features a robust frame fabricated from high-quality steel plates through precision bending and welding.

Its compact and modern design ensures long-term stability and durability under continuous operation. The transmission system consists of a motor-driven reduction gearbox with hardened helical gears , providing smooth power transfer, high load capacity, and low maintenance requirements.

Both DC motor speed regulation and variable frequency (VFD) control are available to meet different production demands. Pneumatic cylinders apply adjustable clamping force to the traction belts, ensuring secure cable pulling while minimizing deformation or abrasion, especially after extrusion and cooling.

Key Features & Advantages Pneumatic Clamping & Flat Belt Traction Ensures uniform pressure distribution and stable traction for various cable diameters. Wide Traction Force Range Available in multiple models from 200 kg to 15,000 kg , suitable for light to heavy-duty cable production.

Precise Speed & Tension Control Equipped with electronic meters to display real-time line speed and meter count. Magnetic Powder Tension Control (Optional) Provides instant tension adjustment, effectively preventing cable abrasion in cooling troughs and ensuring synchronization across the extrusion line.

Flexible Structural Design Small models support overall machine movement or upper-frame movement, allowing easy adaptation to special production processes. High Reliability & Easy Maintenance Heavy-duty mechanical components ensure long service life and stable operation.

Applications Fiber optic outdoor cable sheathing lines Power cable and control cable extrusion lines Armoring and copper tape shielding lines Cable insulation and jacket extrusion production Cable forming and winding processes Main Technical Parameters Model Max. Traction Force (kg) Max. Cable Diameter (mm) Track .

of Cylinders (Pairs) Max.

Traction Speed TQD 300 300 ≤ Ø TQD 500 500 ≤ Ø TQD 800 800 ≤ Ø TQD ≤ Ø TQD ≤ Ø TQD ≤ Ø TQD ≤ Ø TQD ≤ Ø TQD ≤ Ø TQD ≤ Ø Optional Configurations DC motor or VFD motor speed control Magnetic powder tension control system Ground shaft transmission for armoring and shielding lines Customized traction length and belt width Integration with complete cable extrusion lines Why Choose This Traction Device This pneumatic traction device combines strong mechanical performance, precise tension control, and flexible configuration , making it an ideal choice for fiber optic and power cable manufacturers seeking stable, high-quality, and efficient production.
